FRAME

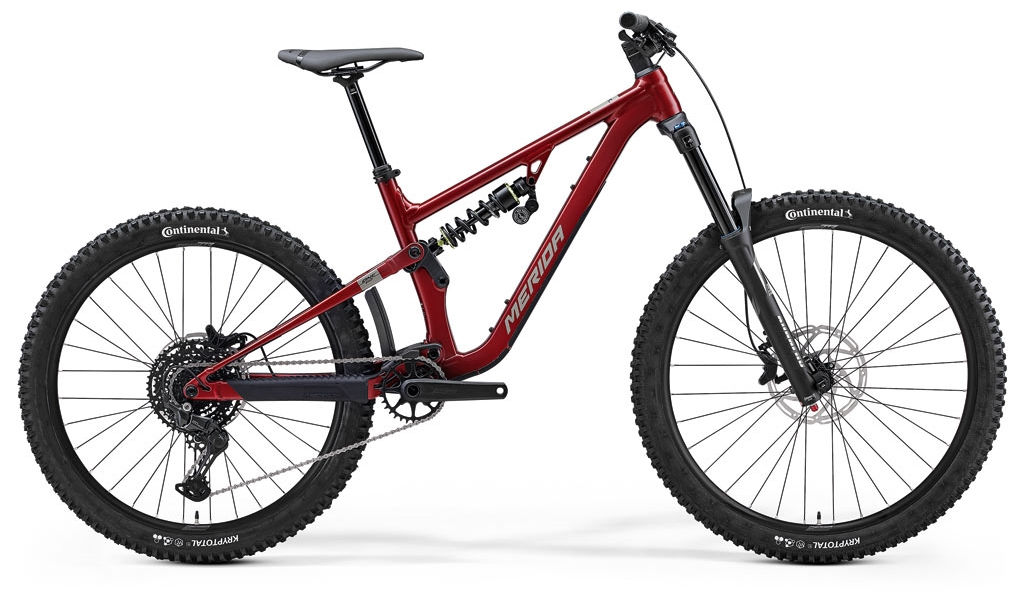

ONE-SIXTY FR LITE III; 171 mm suspension travel mullet, material: aluminium, 29x2.5" max. wheelsize, 148x12 mm axle standard, BSA bottom bracket standard
FRAME SIZE
S, M, L, XL
SHOCK
DVO Jade X D3; coil, spring rate per size XSHORT and SHORT 300 lbs, MID: 350 lbs, LONG: 400 lbs, XLONG: 450 lbs
FORK
SR Suntour Durolux 38 RC; Air, 180 mm suspension travel, Tapered, xx mm fork offset, 29x2.60" max. wheelsize
BRAKE FRONT
Tektro Gemini HD-M535; 4 piston
BRAKE REAR
Tektro Gemini HD-M535; 4 piston
DERAILLEUR (R)
Shimano CUES U6000; GS
CRANK
MERIDA Expert TR; 32 teeth, 170 mm for all sizes
CHAINGUARD
MERIDA EXPERT TR ISCG05
FREEWHEEL
Shimano LG300; 11-48 teeth, 10 speed
HANDLEBAR
MERIDA EXPERT TR II; material: aluminium, 780 mm width, XS/S 18 mm rise, M/L/XL 30 mm rise
HANDLEBAR STEM
MERIDA EXPERT eTRII; material: aluminium, 35 mm diameter, 0° stem angle, 40 mm
HEADSET
Acros ICR MERIDA EXTERNAL neck; Upper and lower IPS sealing
SPACER
210 mm, 12.5 mm
HUB FRONT
Shimano TC500-B; 110x15 mm width front hub, 32 spoke holes, Centerlock
HUB REAR
Shimano TC500-HM-B; 148x12 mm width rear hub, 32 spoke holes, Centerlock
RIM
MERIDA COMP TR II; 110x15 mm width front hub, 148x12 mm width rear hub, 28 mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), front 29", rear 27.5"
SADDLE
MERIDA COMP SL; V-mount
SEAT POST
MERIDA EXPERT TR II; 34.9 mm diameter, 0 mm setback, XS/S: 150 mm travel seatpost - M: 170 mm travel seatpost - L/XL: 200 mm travel seatpost
SHIFTER FRONT
Shimano SL-MT500-L
SHIFTER REAR
Shimano CUES U6000
TIRE FRONT
Continental Kryptotal-F; 29x2.4", fold, TR, Enduro casing, Soft Compund
TIRE REAR
Continental Kryptotal-R; 27.5x2.4", fold, TR, Enduro Casing, Soft Compound
